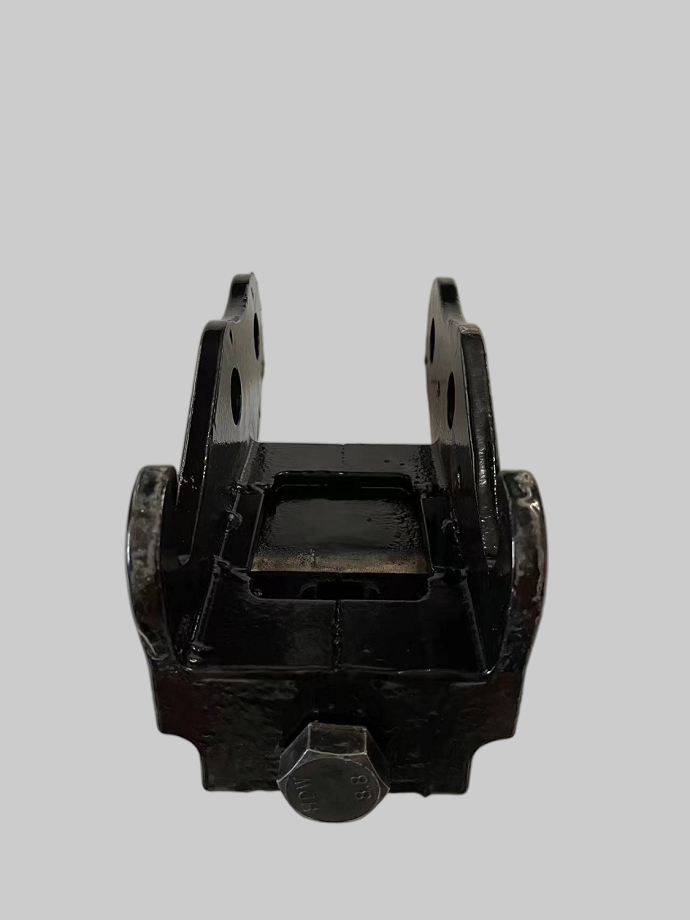

Quick Hitch Coupler For Everun ERE10Pro ERE12 ERE12Pro Mini Excavators

Mechanical Quick Couplers (25mm pin For Everun ERE10Pro ERE12 ERE12Pro Mini Excavators)

Introduction:

The Quick Couplers device of the mini excavator is mainly used to quickly replace and install different accessories , which can be buckets, drill bits, pliers, etc. Its functions and benefits include:

Improve work efficiency: You can quickly switch between different work scenes, saving time in changing devices and making operations more efficient.

Enhanced versatility: Allows the excavator to cope with different task requirements in different engineering projects, such as digging, shoveling, drilling, etc.

Reduce labor costs: Reduce the time and labor intensity of manually changing working devices, and reduce the labor intensity of operators.

Reduce mechanical loss: Avoid mechanical wear and tear caused by frequent replacement of working devices and extend the service life of the excavator.

Adapt to diverse needs: It can be flexibly configured according to different engineering requirements and terrain conditions, which improves the adaptability and flexibility of the machine.

Features of this product:

• The cast steel is cast in one piece, with no welds, a neat appearance, and better strength and toughness.

The casting process uses a secondary quenching process because the steel castings after quenching are usually too brittle and need to be tempered. Tempering is heating the steel to a lower temperature than the quenching temperature and then cooling it at an appropriate speed, which can greatly improve toughness and reduce internal stress.

• The screw locking device is reliable, simple and easy to use.
• The double hook design can be used to lift cargo or move attachments, reducing the operator’s labor intensity.
• Thickened jaws for improved reliability.
• The surface is sprayed with plastic, which can effectively prevent the steel castings from being corroded, has a more beautiful surface effect, supports different colors, and is more environmentally friendly and pollution-free than paint.

Product parameters:

Pin diameter	25mm
Opening	95mm (outer width 115mm)
Technology	Cast steel, secondary quenching
surface	Plastic spraying
color	Black, engineering yellow, gray, blue, green, etc. available
Deadweight	7.1kg (without pin)
Locking	Screw
Scope of application	08 type 10 type 12 type mini excavator
Pin fixing method	Screw (8mm)
Hook	Double hook
Axis center distance	85mm-90mm

Applicable brands: Mini excavators made in China
Applicable models: Everun ERE10Pro ERE12 ERE12Pro Mini Excavators
