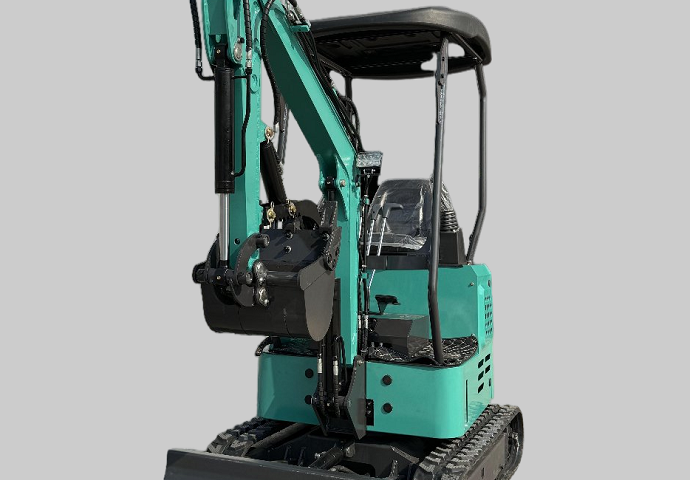

Data of 1500kg mini excavator.
| Machine weight | 1000kg |
| Machine length | 3000mm |
| Machine width | 1000mm |
| Machine height | 2150mm |
| Track length | 1220mm |
| Chassis width | 1000mm |
| Standard bucket capacity | 0.025m³ |
| Standard bucket width | 370mm |
| Maximum digging depth | 1830mm |
| Maximum digging height | 2870mm |
| Maximum unloading height | 1940mm |
| Maximum digging radius | 3220mm |
| Minimum turning radius | 1300mm |
| Maximum digging distance | 2450mm |
| Bulldozer lifting height | 200mm |
| Bulldozer lowering depth | 140mm |
| Engine Model | Laidong 380 |
| Engine parameters | 19kw-2200rpm |
| Work Pressure | 16Mpa |
| Main pump | 6mL/r |
| Gradeability | 30° |
| Maximum digging force | 11KN |
| Operation Mode | Mechanical two-side operation |
Standard configuration: Laidong 380 engine, domestically-produced well-known hydraulic parts, rubber tracks, mechanical operation on both sides, four-legged simple shed.
Excellent price!
